ARES (30lb Combat Robot)

Anti-Drum Forks

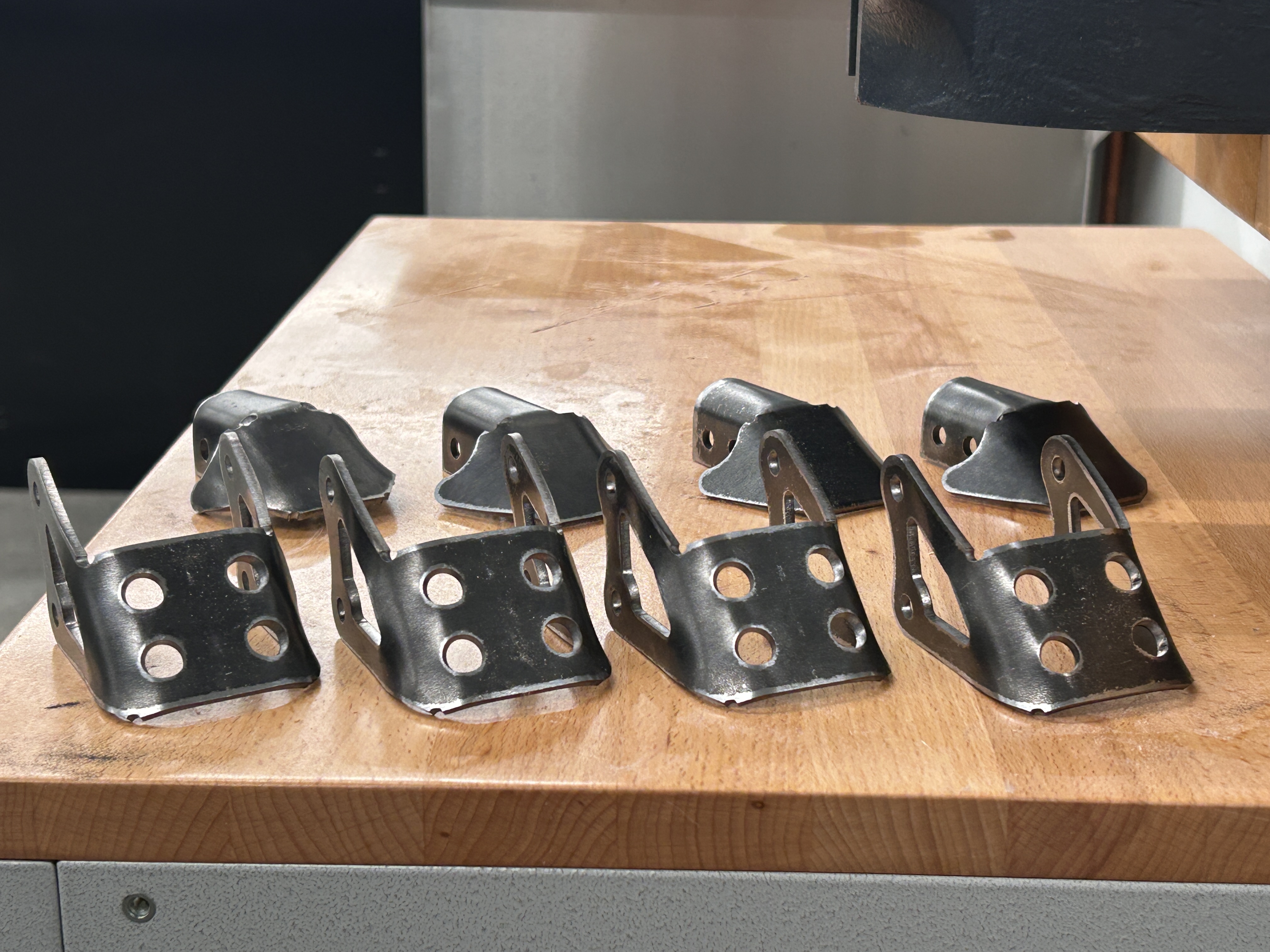

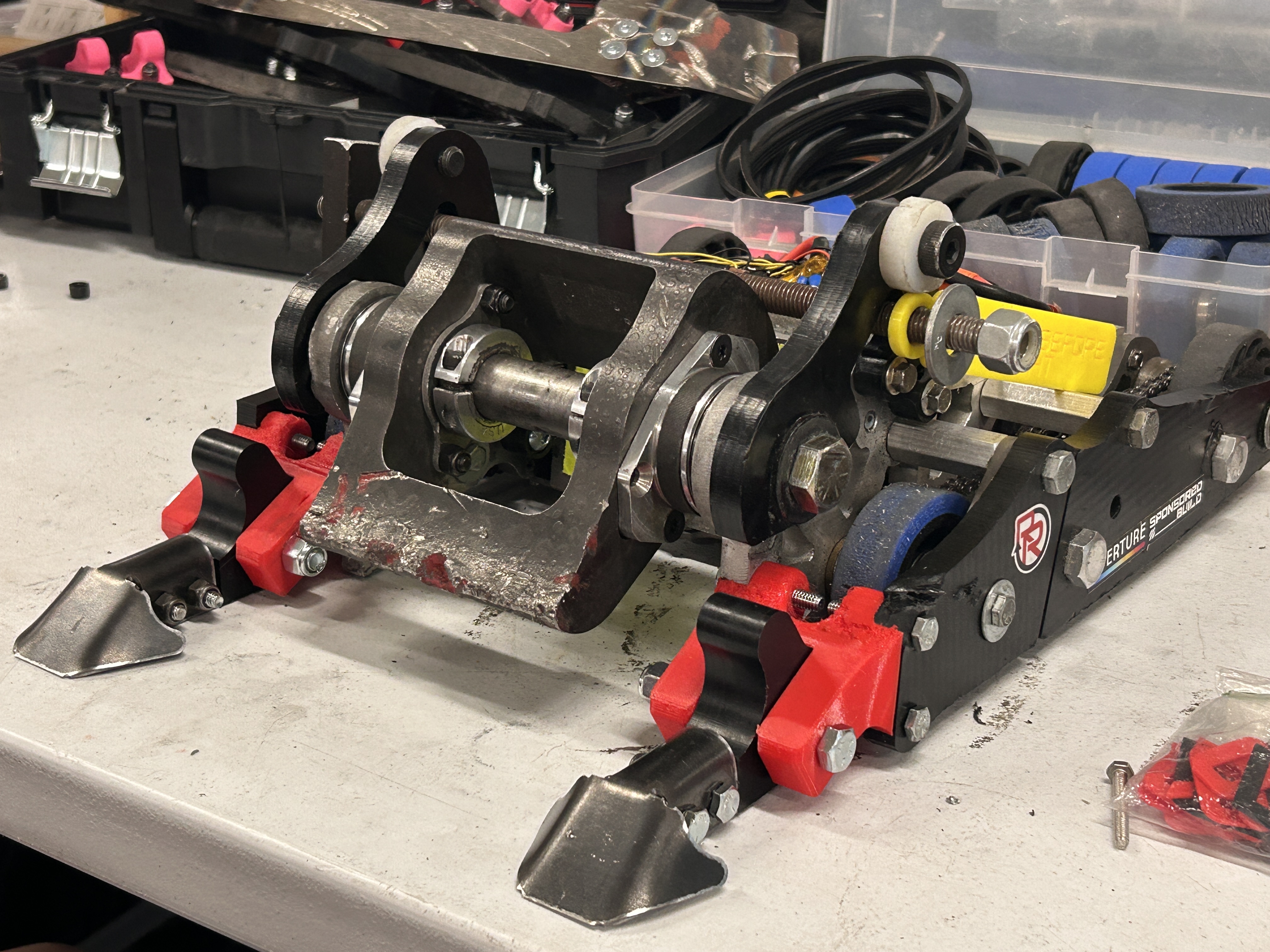

Wide vertical spinners, commonly known as beaters or drums, are becoming increasingly prevalent in combat robotics due to their ability to deliver significant kinetic energy upon impact. One effective countermeasure is to deflect these impacts back into the opposing weapon using sloped, metal-tipped forks. I designed these forks from A36 steel, using a hydraulic press brake to form the angled profiles needed to counter these powerful weapons and withstand repeated impacts. The steel tips are mounted to more compliant UHMW extensions, reducing weight while remaining protected by the steel contact surfaces.

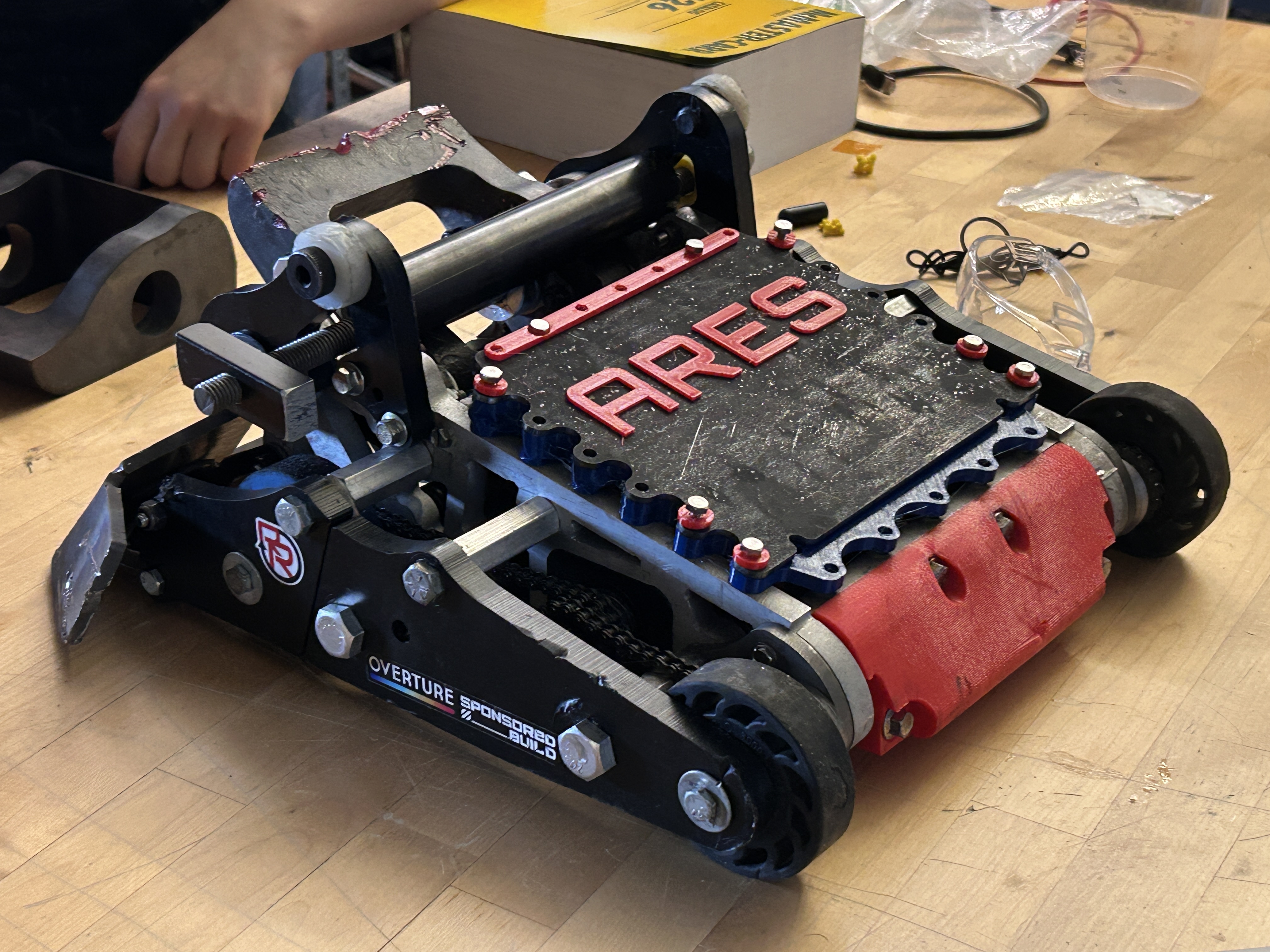

AR500 Heavy Top Armor

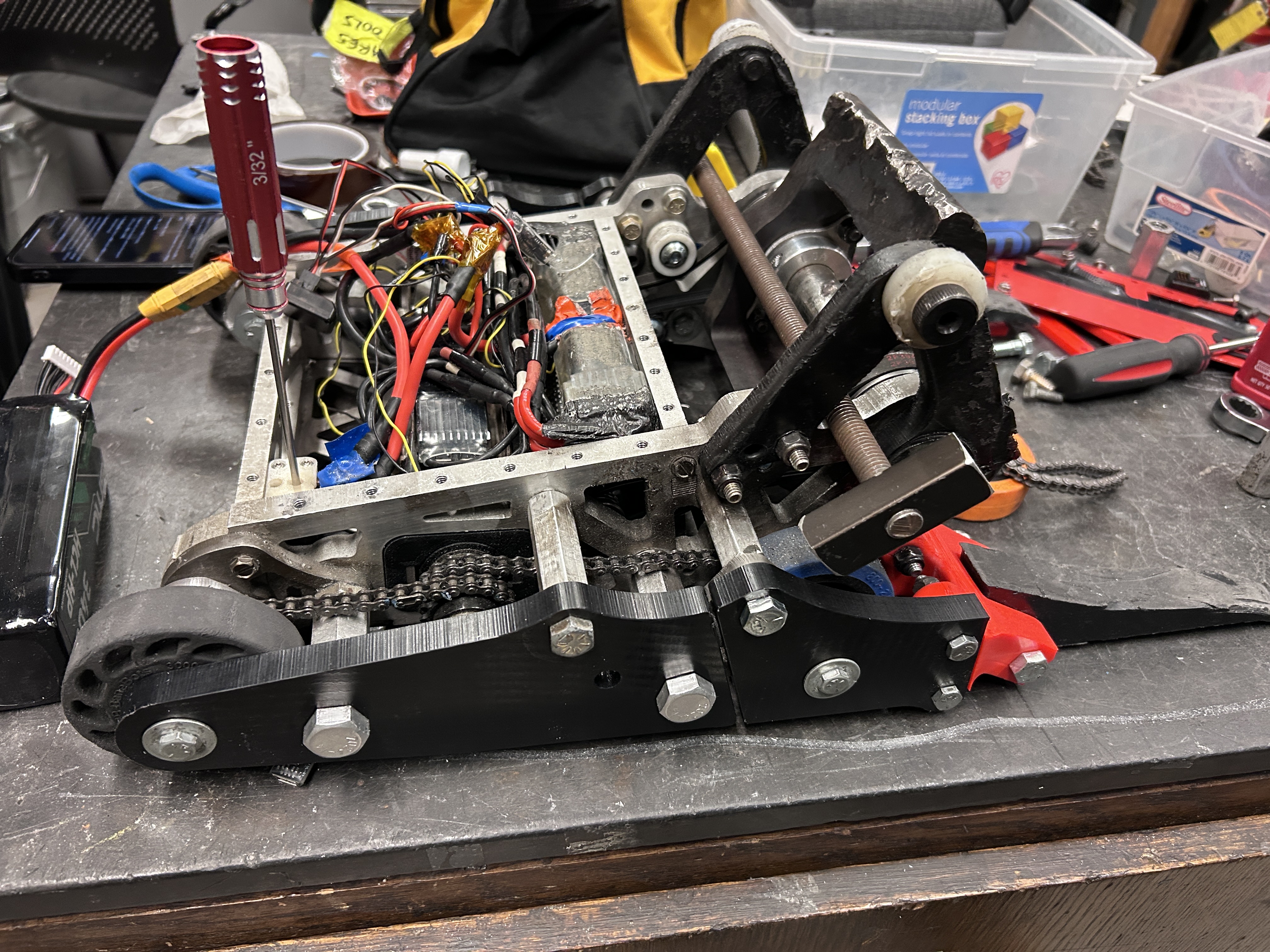

Another increasingly common threat in combat robotics is the hammersaw, which combines a smaller spinning weapon with a hammer mechanism to precisely direct strikes onto the tops of opposing robots. These attacks can damage vulnerable internal components that are otherwise well protected, including the lithium-polymer batteries that power the robot.

To prepare for these matchups, I designed a new top armor configuration for ARES using 1/8-inch AR500 steel to protect its internal components against penetrating strikes. This design proved particularly effective during our first fight in October 2026, when we faced two hammersaws simultaneously and emerged relatively unscathed.

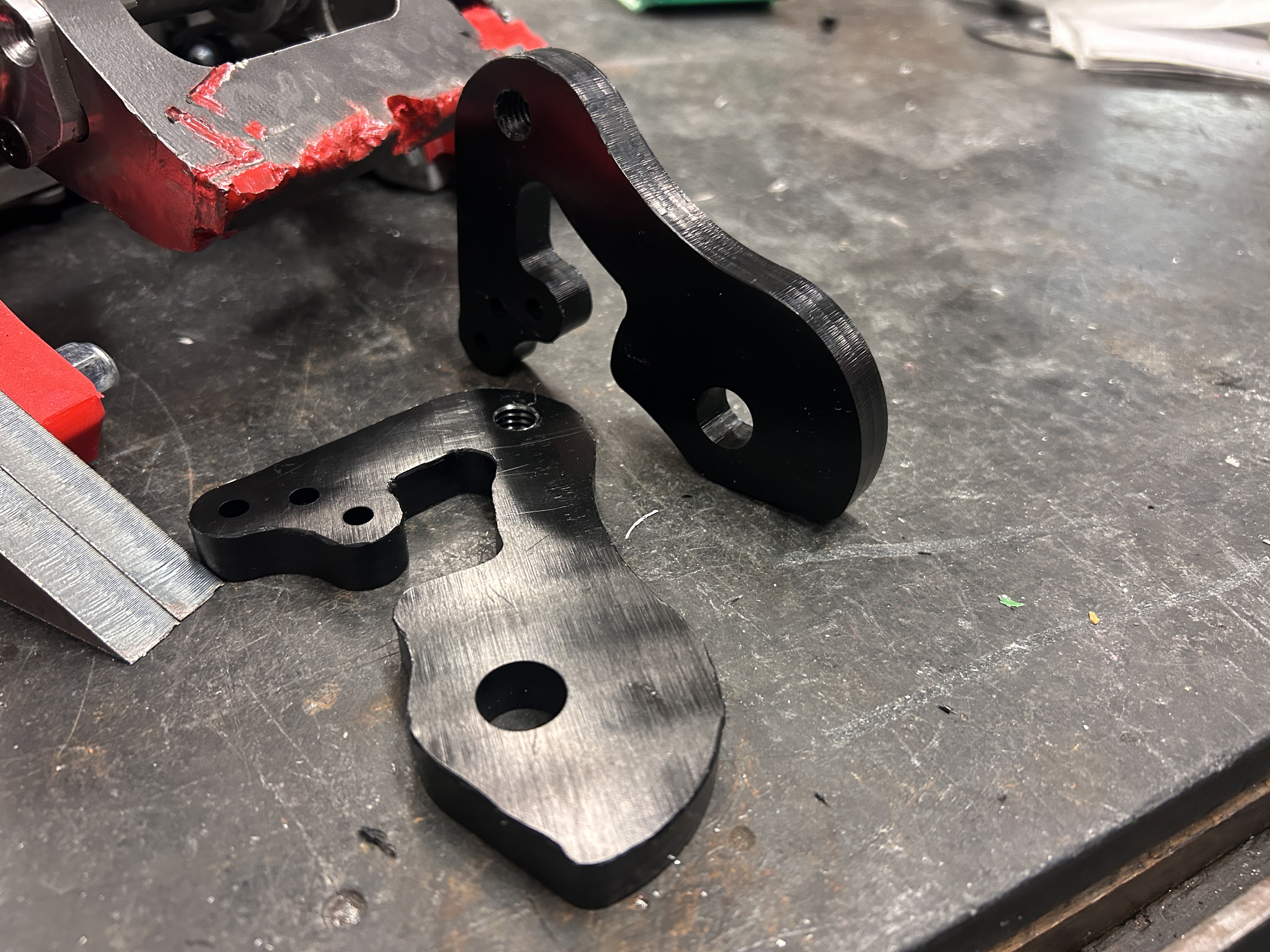

UHMW Inverted Drive Ears

One issue ARES experienced at previous competitions was with its inverted driving system. When facing robots with horizontal spinners or competing in more chaotic fights, the inverted drive "ears" mounted atop the robot were prone to breaking. In some cases, the broken pieces would fall into the weapon mechanism, jamming it entirely and making self-righting more difficult. To address this, I redesigned the ears to sit much deeper within ARES, moving them out of the primary impact zone and reducing the likelihood of debris interfering with the weapon. I then CNC-machined the redesigned components in-house, improving their integration with the existing chassis and helping ARES maintain reliable driving and weapon operation throughout a fight.
